End Mill Re-SharpenerEMG Series
Product Introduction
EMG-1325(Ø12mm ~ Ø25mm)

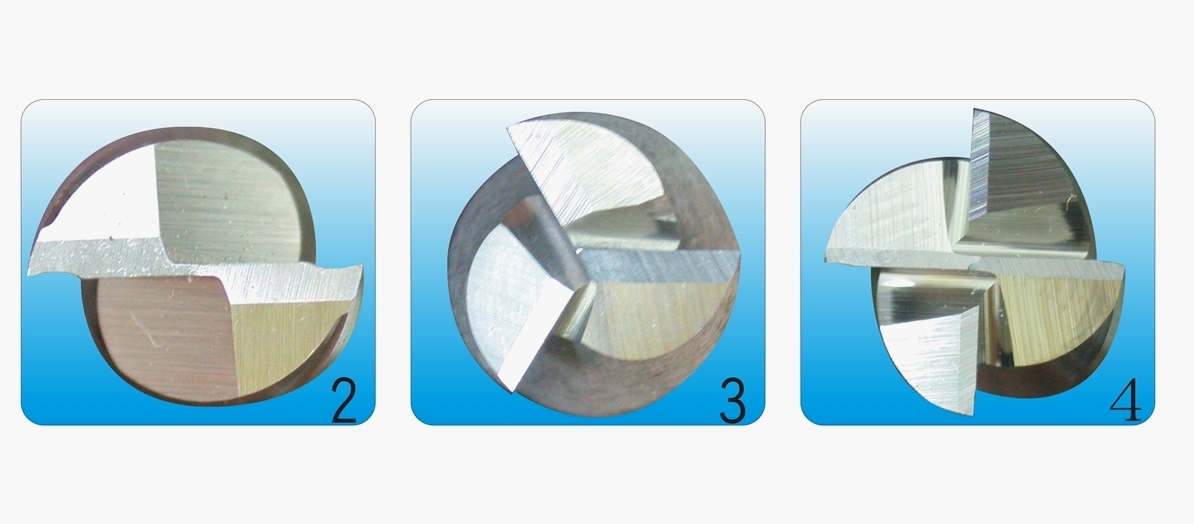

For 2.3.4flutes END MILL
6pcs ER collets
2pcs collet holders
SDC wheel for Ø12mm-Ø25mm
CBN wheel for Ø12mm-Ø25mm
EMG-413 (Ø4mm-Ø13mm)
10pcs ER collets
2pcs collet holders
2pcs SDC Wheels included (For carbide End Mill only.)
SDC wheel (for Ø4mm ~ Ø5mm)
SDC wheel (for Ø6mm ~ Ø13mm)
ER collets
Ø4mm
Ø5mm
Ø6mm
Ø7mm
Ø8mm
Ø9mm
Ø10mm
Ø11mm
Ø12mm
Ø13mm
Order No. EMG-413ER
Ø12mm
Ø16mm
Ø18mm
Ø20mm
Ø22mm
Ø25mm
Order No. MG-1225ER
| Model NO. | EMG-413 | EMG-1325 |
|---|---|---|
| Capacity | Ø4mm ~ Ø13mm | Ø12mm ~ Ø25mm |
| Drill Angle |  |
|
| Grinding Wheel | SDC Wheel #300 for Ø4mm ~ Ø5m | CBN #150 x 1PC |
| SDC Wheel #300/#120 for Ø6mm ~ Ø13mm | SDC #150 x 1PC | |
| Motor | 3/4 HP 450W | 1000W |
| R.P.M. | 6000 R.P.M. | 4300 R.P.M. |
| Power Supply | AC110V or AC220V Single Phase | |
| Weight | 17 KGS | 31 KGS |
Collets Holder
for 3 flutes End Mill
Order No.
EMG-413-H1
for 2 and 4 flutes End Mill
Order No.
EMG-413-H2
for 3 flutes End Mill
Order No.
EMG-1225-H1
for 2 and 4 flutes End Mill
Order No.
EMG-1225-H2
| Model NO. | EMG-413 | EMG-1325 |
|---|---|---|
| ER collets | Ø4mm ~ Ø13mm x 10pcs | Ø12mm ~ Ø25mm x 6pcs |
| SDC Wheel | #300 x 1pcs (Ø4mm ~ Ø5mm) | CBN #150 x 1PC |
| SDC Wheel | #300 #120 x 1pcs (Ø6mm ~ Ø13mm) | SDC #150 x 1PC |
| Collet Holder | 1pc (for 2 and 4 flutes End Mill) | 1pc (for 2 and 4 flutes End Mill) |
| Collet Holder | 1pc (for 3 flutes End Mill) | 1pc (for 3 flutes End Mill) |
| Hexagon Wrench | 4mm x 1pc | 4mm x 1pc |
SDC and CBN wheel
EMG-413-1D
or
EMG-413-1C
EMG-413-2D
or
EMG-413-2C
EMG-1225-1C
EMG-1225-1D
| Model NO. | Description |
|---|---|
| EMG-413-1D | SDC Wheel #300 (for Ø4mm ~ Ø5mm) |
| EMG-413-2D | SDC Wheel #300 / #120 (for Ø6mm ~ Ø13mm) |
| EMG-413-1C | CBN Wheel #300 (for Ø4mm ~ Ø5mm) |
| EMG-413-2C | CBN Wheel #300 / #120 (for Ø6mm ~ Ø13mm) |
| EMG-1225-1D | SDC Wheel #150 (for Ø12mm ~ Ø25mm) |
| EMG-1225-1C | CBN Wheel #150 (for Ø12mm ~ Ø25mm) |
| ***SDC Wheel for carbide End Mill. ***CBN Wheel for HSS End Mill. |
|
