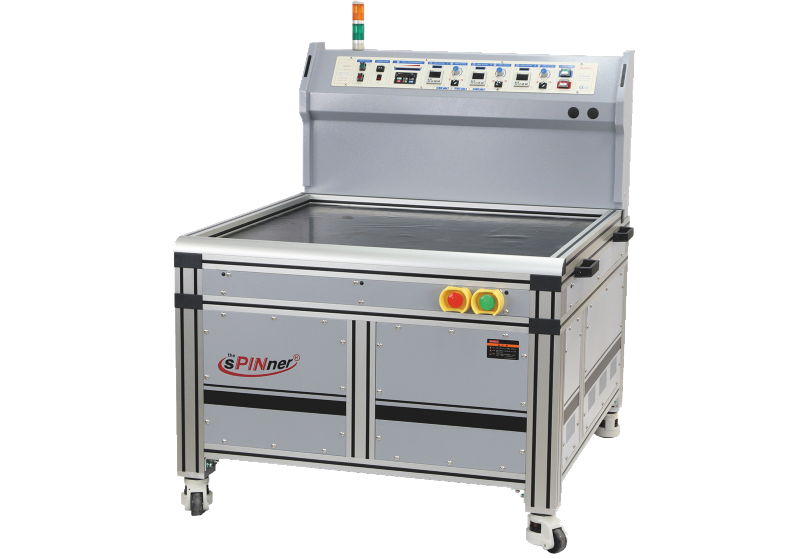

Magnetic De-burring & Polishing MachineHD-790

Magnetic De-burring & Polishing MachineHD-790
Product Description
18 KG grinding capacity
Inquiry
HD-790 Series Deburr Machines with 0.2kg Grinding Capacity
Product Introduction
Grinding container (examples):


詢價、詢問
Direct inquiry Put in the inquiry list 成功加入詢價單

  • Max grinding capacity : 18kg.
  • Max grinding area Ø830mm.
  • According to the size and quantity of workpieces, users can choose different sizes and shapes of flat-bottomed plastic containers.
  • 3-stage grinding programs with independent adjustment functions for grinding force (speed), grinding time and rotation direction.
MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
HD-790  1050×1140×1220 mm  Ø830×250mm 3 phase AC220/380V(50/60HZ) 340 KG

MODEL Max grinding capicity (reference) STANDARD ACCESSORIES
HD-790  Stainless steel (Non-Magnetic), Copper  18 KG

1.Stainless pins/24 KG
2.Plastic container/2 sets
3.Separating container/1set
4.PIN collector : 2set
5.Grinding liquid/((20,000c.c)
6.Operation manual
Stainless steel (Magnetic), Aluminum, Zinc, Iron, Steel 7.5 KG
